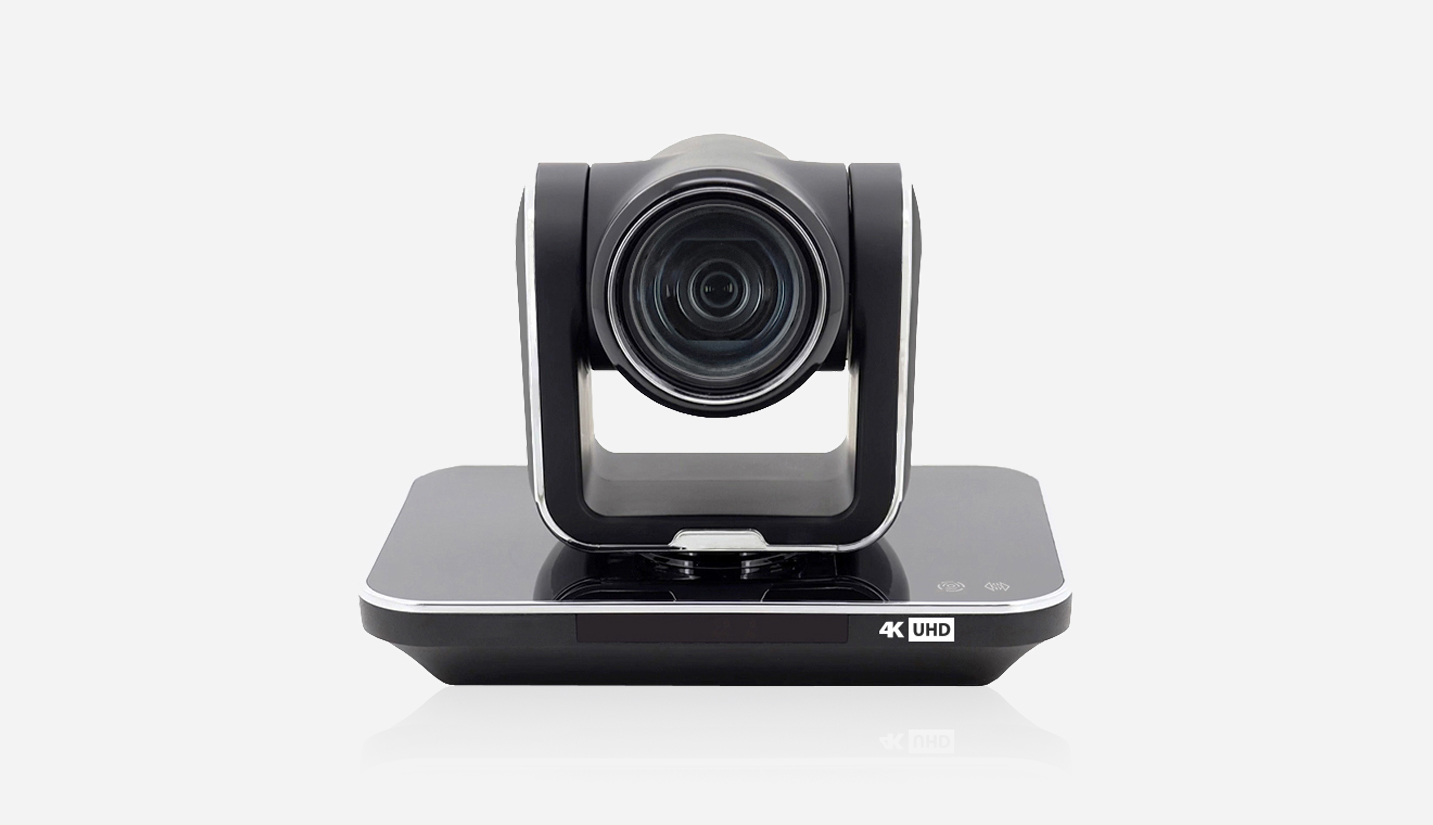

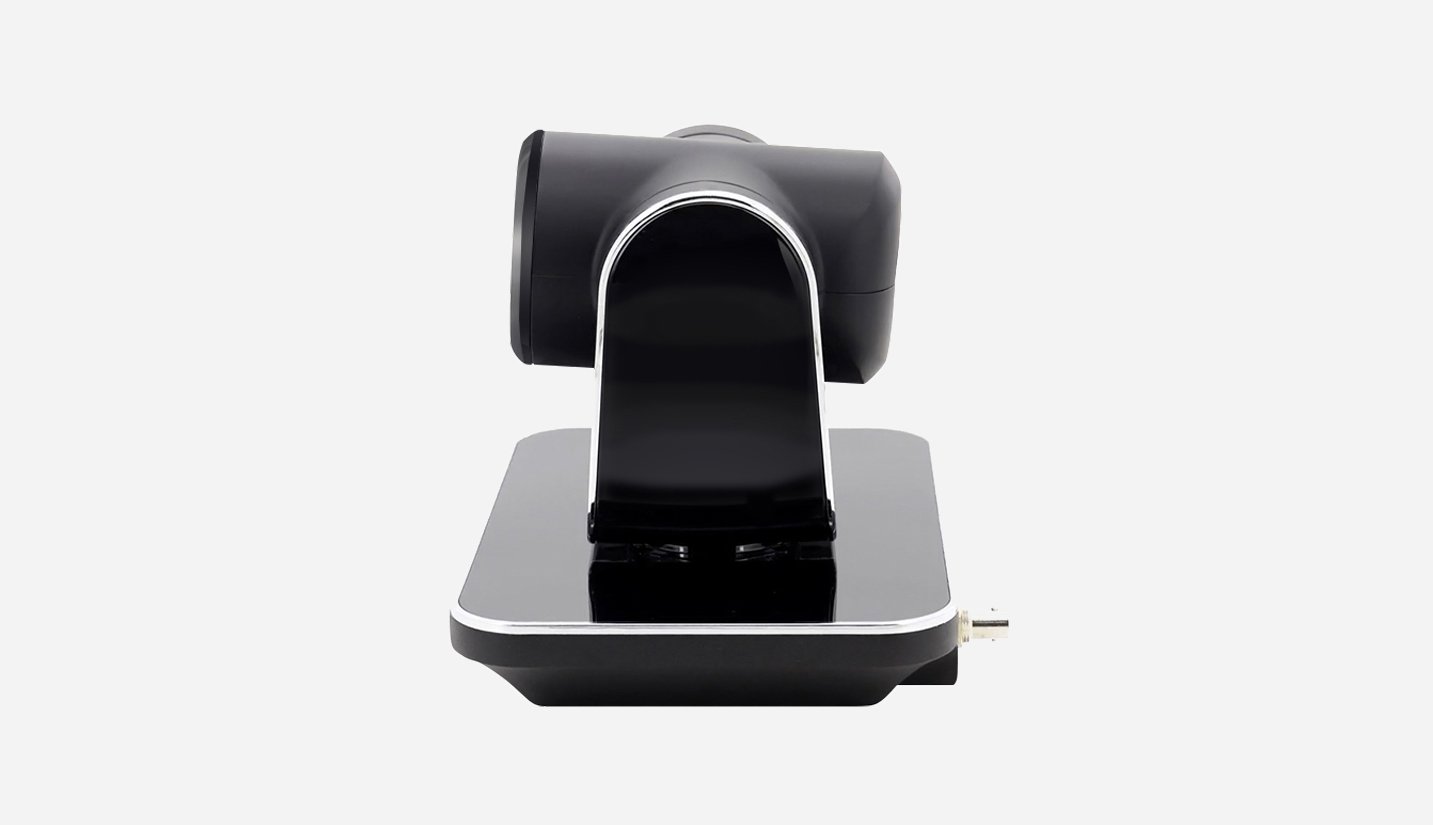

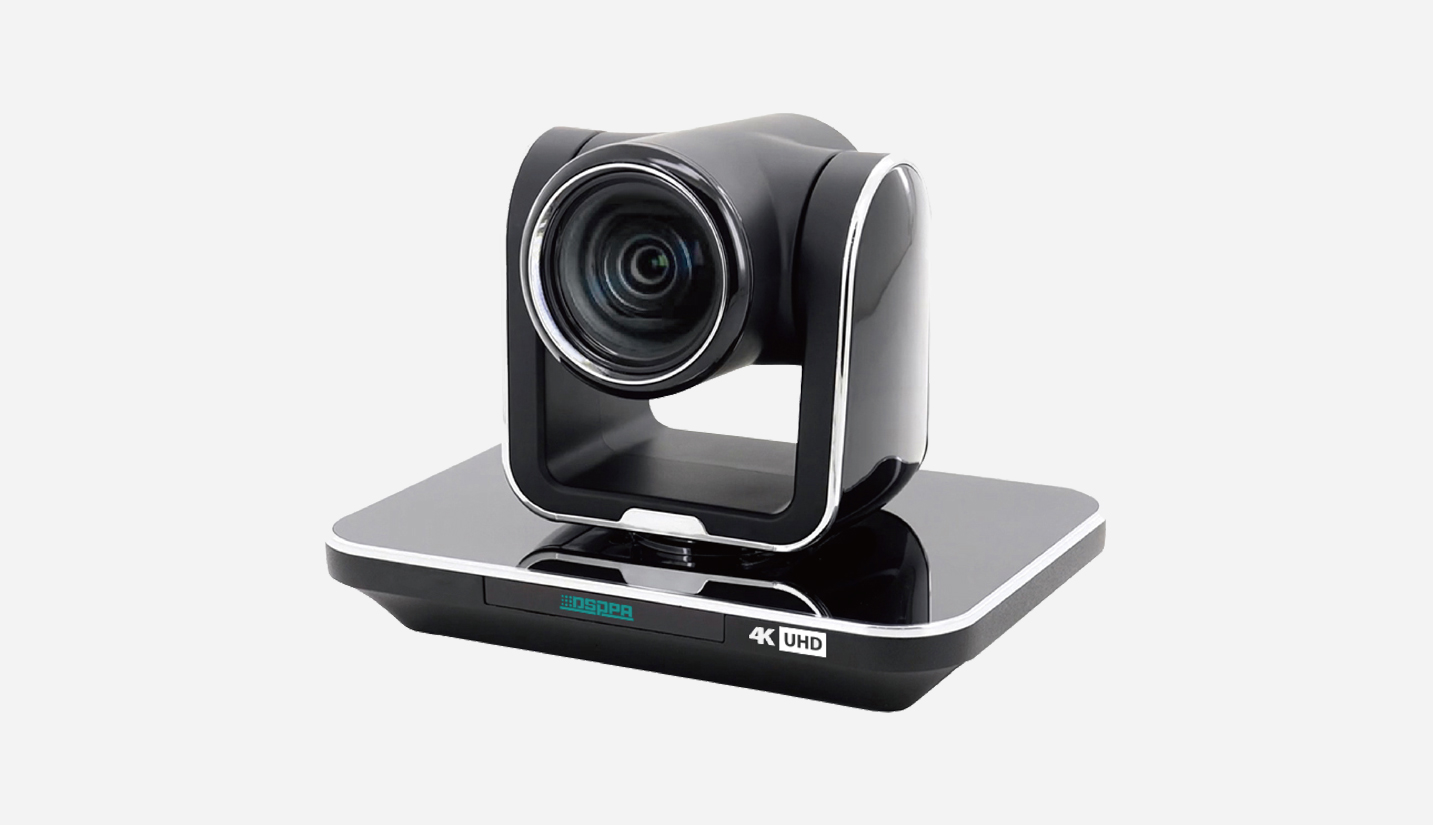

Digital Conference Tracking Camera - 翻译中... D7149

Camera Parameters

Lens

12x 4K optical zoom

Image sensor

1/2.5-inch ExmorR CMOS image sensor

Effective pixels

Approximately 8.5 million

Focal length

f=4.4mm ( W ) 52.8mm ( far)

Shutter speed

1/1 to 1/10000 second

Horizontal viewing angle

About 80.5° (W )

White balance

Automatic, one-click setup, manual

Exposure control

Automatic, manual, priority automatic exposure (shutter, aperture)

Focus mode

Automatic / Manual

Minimum illumination

0.1 lux

Minimum target distance

80mm~ 400mm

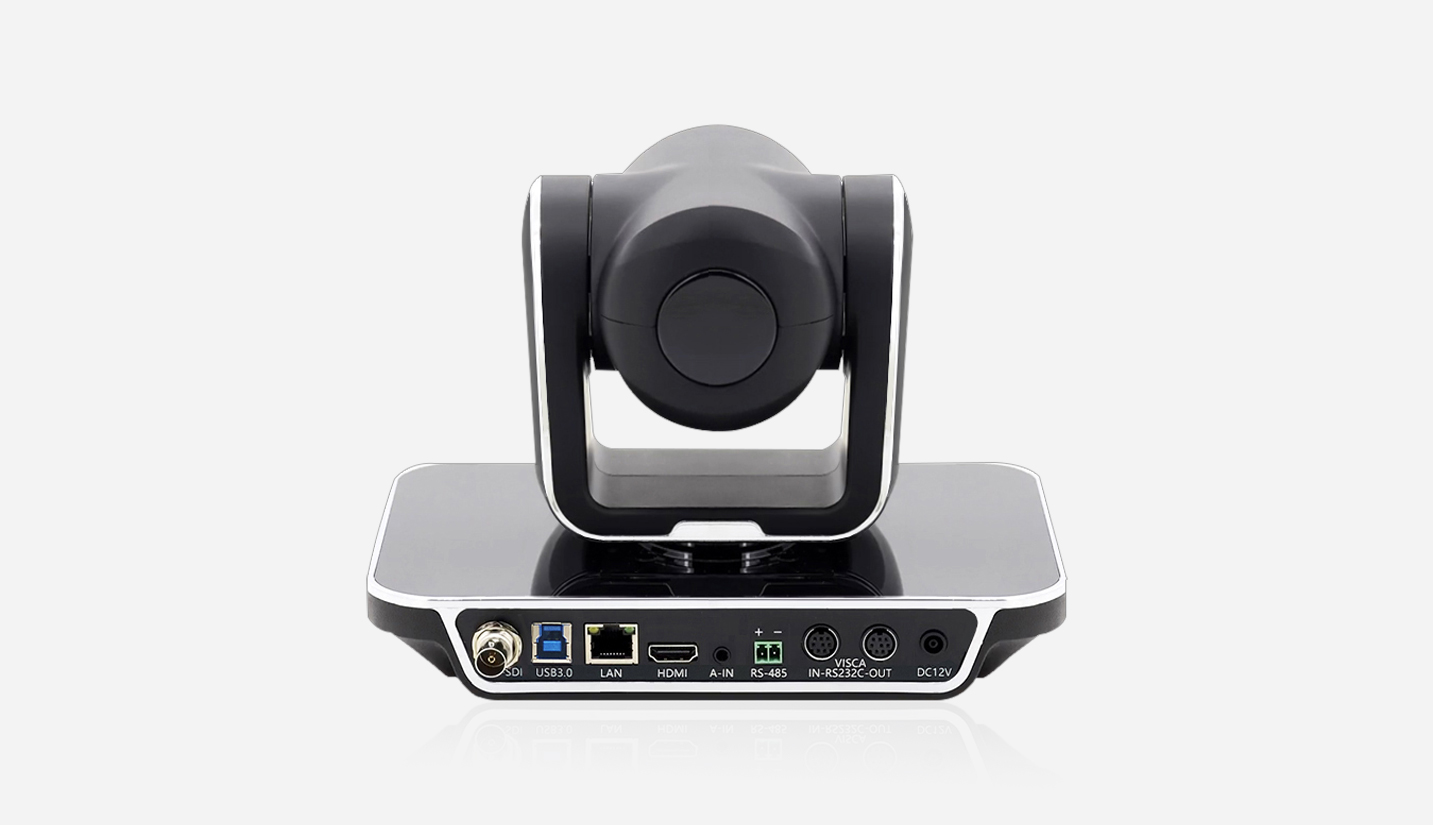

Interface Parameters

4K video output

HDMI ×1 , IP (Real-time streaming )×1(RTSP/RTMP/RTMPS)USB3.0×1

HD video output

3G-SDI ×1, HDMI ×1, IP ( Real-time streaming )×1, USB3.0×1

Communication

RS485 / IP / RS232-C

Power interface

DC 12V JEITA Standard or POE (Power over Ethernet) power supply

Communication baud rate

2400/4800/9600/115200

Audio input interface

Dual-channel 3.5mm line input

Audio compression format

ACC, G711A, G711U

Network interface

100M Internet (10/100BASE-TX)，

Support Internet VISCA/PELCO-D/PELCO-P/ONVIF Control Protocol

Network protocol

RTSP、RTMP、ONVIF、GB/T28181

PTZ Parameters

Horizontal rotation

-178°  ~ +178°

Pitch rotation

-30°   ~ +90°

Horizontal rotation speed

0.1~100° / Second

Pitching rotation speed

0.1~80° / Second

Number of preset positions

A maximum of 255 can be set, with freeze functionality supported.

Other Parameters

Power adapter

Input  AC100V~AC240V Output DC12V/2A

Input voltage

DV12V

Power consumption

12W(Maximum)

Storage temperature and humidity

-10° C ~ +60° C / 20% ~ 95%

Working temperature and humidity

-10° C ~ +50° C / 20% ~ 80%

Usage environment

Indoor

Random attachments

RS232 to DB9Pin serial cable, USB3.0 data cable, RS485 terminal, power adapter, remote control, user guide, certificate of compliance, warranty card

Optional accessories

Wall-mounted / Inverted bracket, bracket screws
