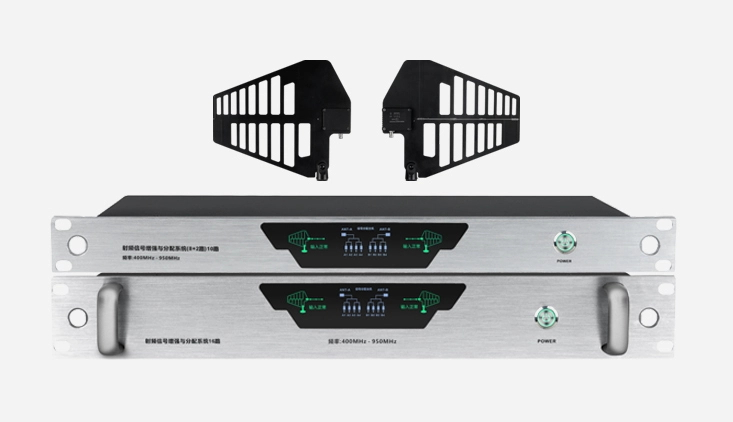

Model | D5828 D5836 D5828C D5836C |
High-Frequency Signal Input | 2 BNC inputs |
Applicable Frequency Range | 400~950MHz |
Input Cutoff Point | +32dBm |
Amplified Signal Output | 8 BNC outputs + 2 BNC backup cascade outputs (8- CH) / 16 BNC outputs (16-CH) |
RF Output Gain | +1.0dB±1dB |
Output/Input Gain | +1.0dB±1dB |
Output Isolation | >18dB at 400~1000MHz |
Output/Input Impedance | 50Ω |
Antenna Output Connector | BNC connector |
Antenna Input Connector Power Supply | +8.0V DC / 200mA |
Power Supply | 12~15V DC |
Current Consumption | approximately 200mA/12V DC input |
Package Dimensions (8 Channels & 16 Channels) | 520×380×250mm |
Machine Dimensions (8 Channels) | 482×200×45mm |
Machine Dimensions (16 Channels) | 482×200×66mm |
Gross Weight (8 Channels) | 6.6kg |
Gross Weight (16 Channels) | 7.1kg |
Net Weight (8 Channels) | 1.96kg |
Net Weight (16 Channels) | 2.25kg |
Model | D58LG D58E |
Antenna Type | Log-Periodic Dipole Antenna (LPDA) |
Frequency Range | 400-950 MHz |
Output Interface | Bayonet female socket (BNC) |
Antenna Impedance | 50Ω |
Built-in Booster | +2dB, +6dB, +8dB, +12dB (four adjustable levels) |
Operating Status Indication | Power and gain LED indicators |
Directionality | Horizontal 90°, Vertical 60° |
Pointing Polarity | Vertical polarization |
Operating Voltage | Bias power supply 8~15V DC |
Package Dimensions (mm) | 510×360×70 |
Machine Dimensions (mm) | 320×275×22 |
Net Weight (1pc) | 3.5kg |
