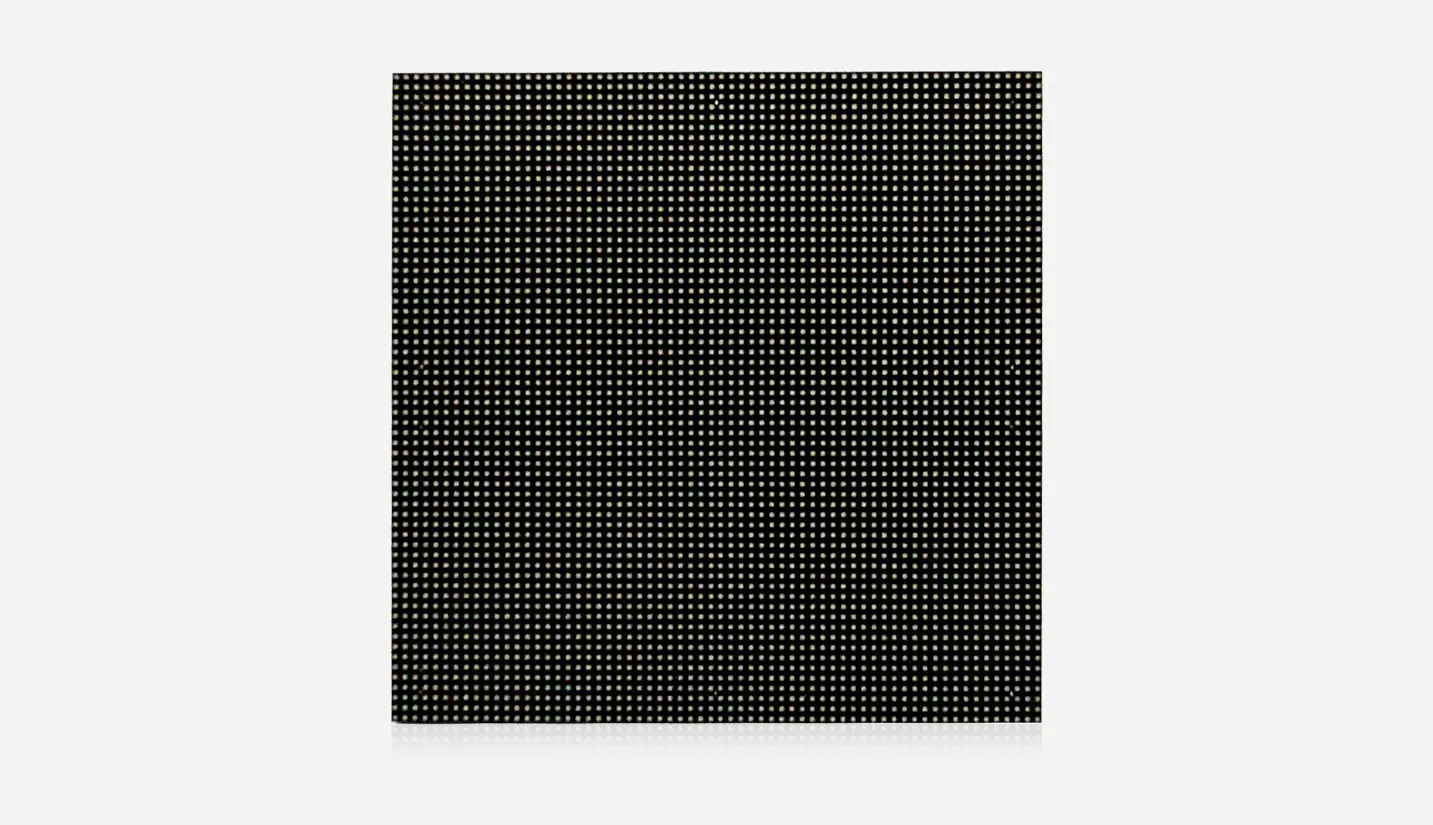

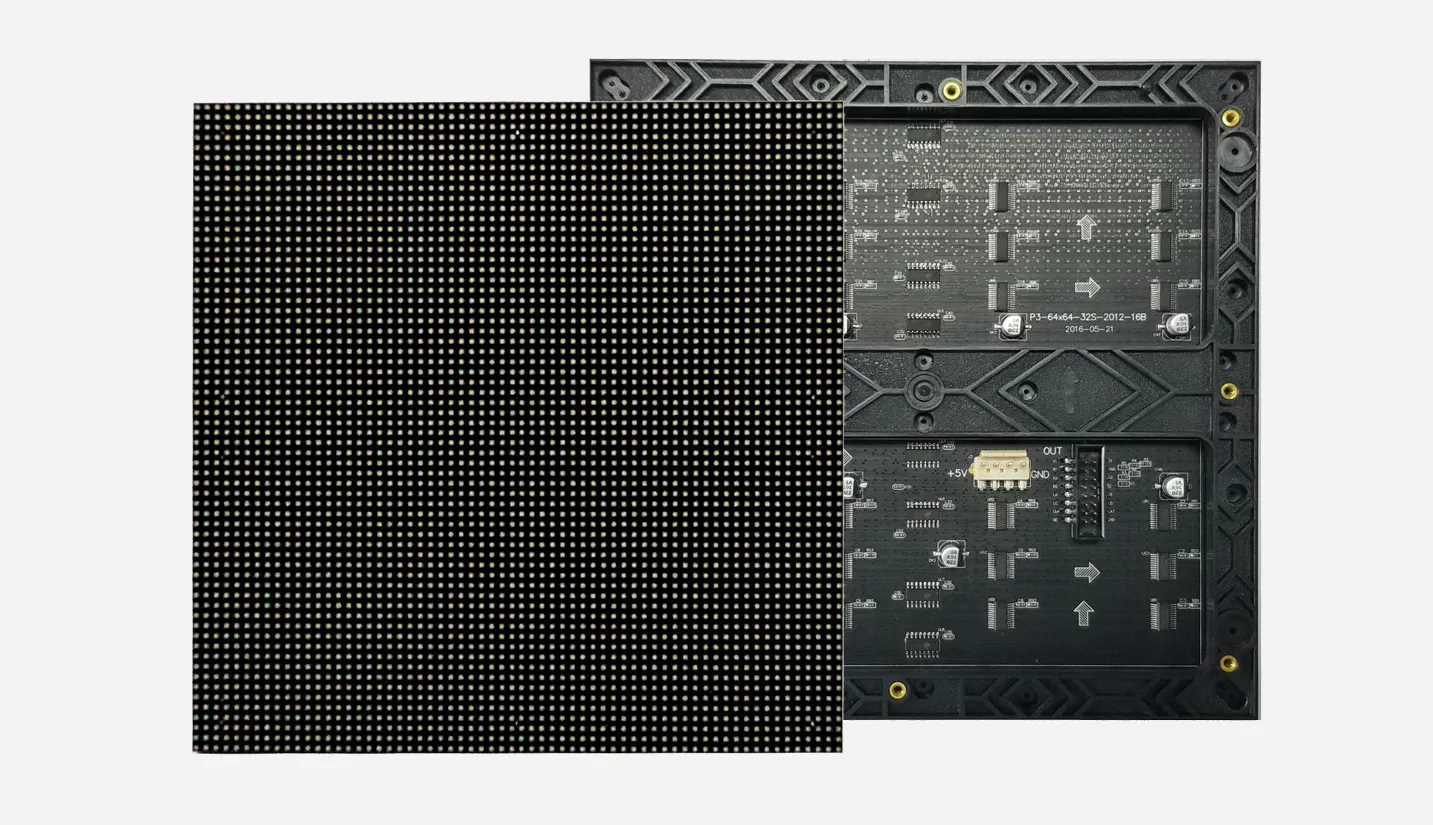

Model | DP-N307GC |
Pixel Pitch | 3mm |
Pixel Density | 111111 dots/㎡ |
Module Resolution | 64×64 pixels (W×H) |
Module Dimensions | 192×192×14.2mm (W×H×D) |
Module Weight | Approximately 290g |
Driving Method | 16-bit constant current |
Scan Mode | 1/32 |
Operating Voltage | DC5V±10% |
Maximum Current | 3.5A (typical) ① |
Maximum Power Consumption | 17.5W (typical) ② |
Power Interface | VH4 |
Signal Interface | HUB75D (IDC16) |
Maximum Brightness | ≥800cd/㎡ |
Color Temperature | 1000-20000K (adjustable) |
Viewing Angle | 170° |
Optimal Viewing Distance | ≥3m |
Gray Scale | ≥14-bit |
Brightness & Color Calibration | Support |
Refresh Rate | ≥3000Hz③ |
Operating Environment | Indoor |
Brightness Adjustment Range | 0-255 (adjustable) |
Typical Lifespan | 100,000 hours |
Operating Temperature | -20℃~60℃ |
Operating Humidity | 10%-90%RH, non-condensing |
Storage Temperature | -40℃~80℃ |
