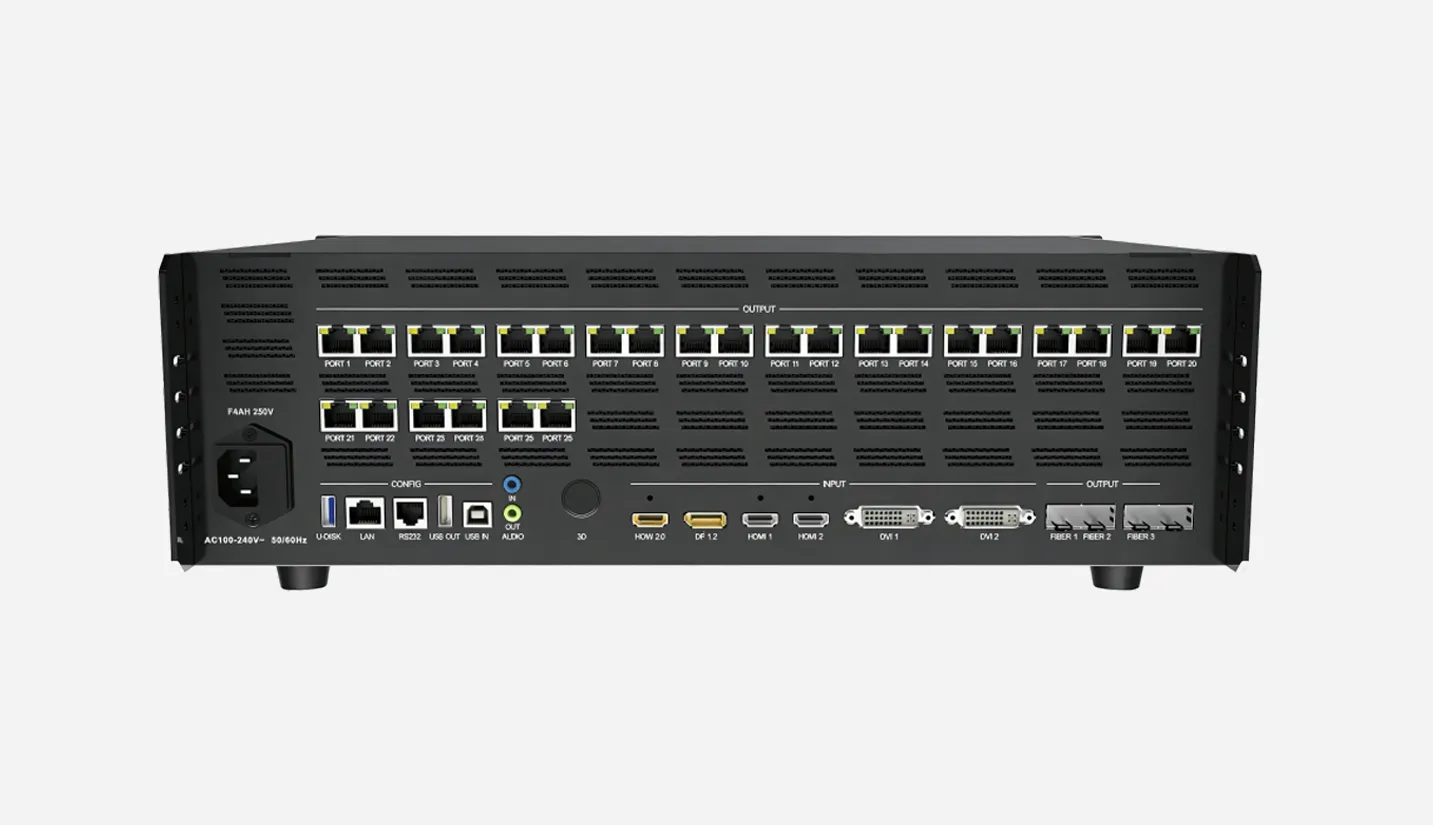

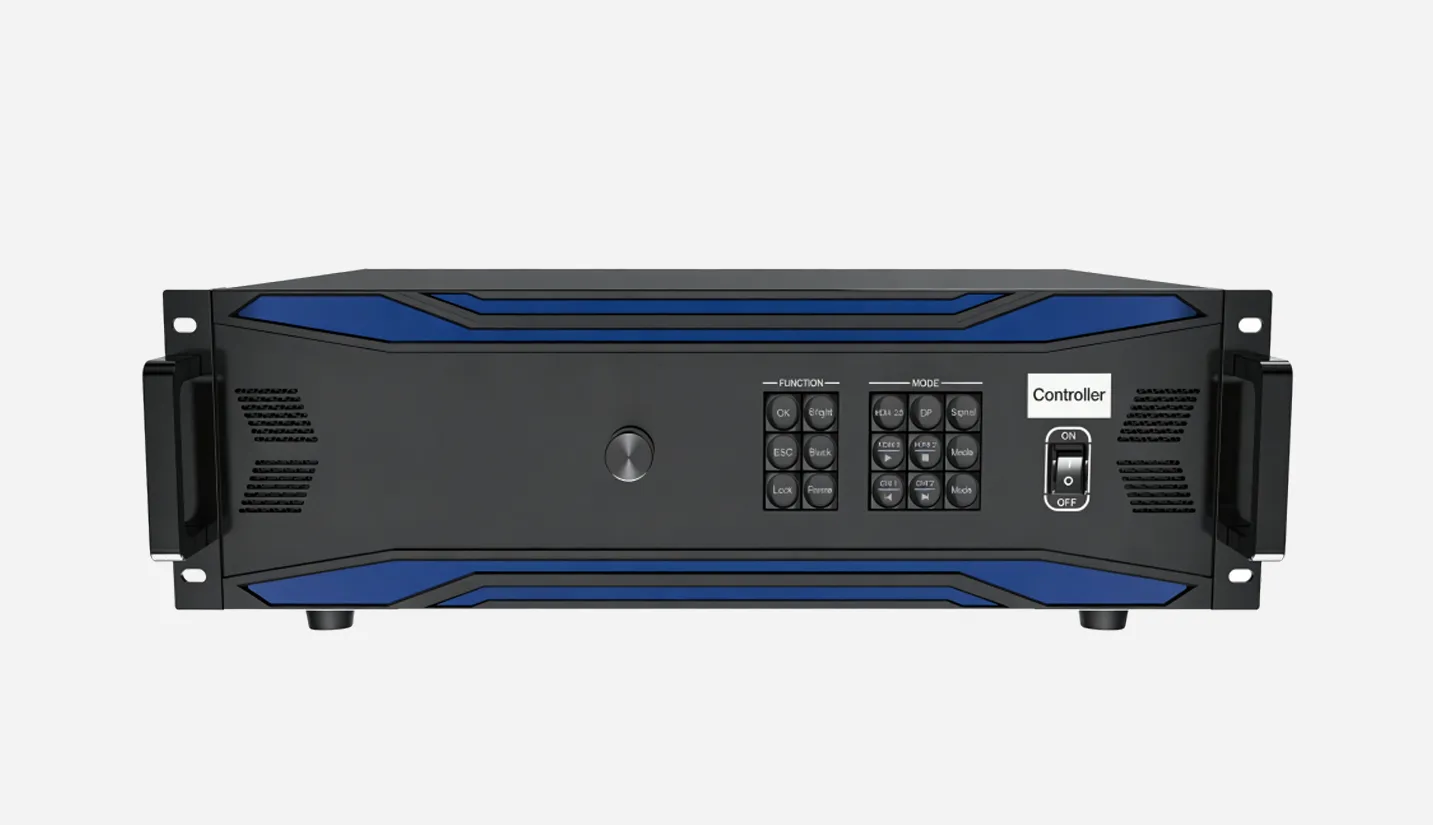

Model | DP-X26m |
Video Input | 2 × 4K (DP 1.2, HDMI 2.0); 4 × 2K (HDMI 1.4, DVI) |
Max. Input Resolution | 4096 × 2160 @ 60Hz |
Output | 26 × Gigabit Ethernet or 3 × 10G Optical Ports (Selectable) |
Loading Capacity | 17.03 Million Pixels |
Audio | 1 × Audio Input, 1 × Audio Output; HDMI/DP Audio Extraction |
Display Functions | Up to 6 Windows, Layering & Overlay, Roaming & Scaling (min. 64 × 64) |
Video Processing | Cropping and seamless switching |
Image Adjustment | Color management, brightness & color temperature adjustment |
Advanced Features | Video sync & phase-lock, low-brightness high grayscale, 3D (optional) |
Control | USB, RS232, LAN, Mobile APP; Bluetooth (optional) |
Power Supply | AC 100–240 V~, 50/60 Hz |
Power Consumption | 80W |
Operating Temperature | -20°C to 50°C |
Storage Temperature | -30°C to 80°C |
Humidity | 0–80% RH (working), 0–90% RH (storage), non-condensing |
Product Dimensions (W×H×D) | 482.6 mm (19") × 133.3 mm (5.3") × 385.0 mm (15.2"), Excluding Feet Pads |
Package Dimensions (W×H×D) | 560.0 mm (22.1") × 240.0 mm (9.5") × 480.0 mm (18.9") |
Net Weight | 6.25kg |
Gross Weight | 8.95kg |
